CuZn CT-101 Model

Enjoy pure, delicious water throughout your entire home! CuZn’s revolutionary WHCM7-13 is dynamic dual media filtration system designed specifically for chloramine treated municipal water. Earth Friendly! Features include biodegradable or recyclable medias, no waste water, no backwashing, chemical free, salt free & refillable.


{tab=Product Information}

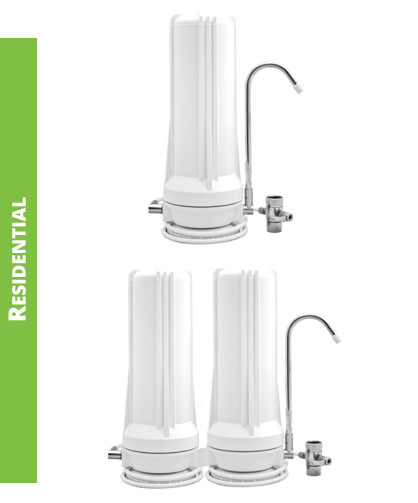

The CT-101 water filtration system works along side any home or office sink to filter up to 10,000 gallons of cold water on demand! Using a combination of patented trace minerals (Copper-Zinc) which has been tested to NSF standard 42 and 61, and coconut shell carbon. Unlike carbon only filters, bacteria can’t grow inside the bacteriostatic CuZn filters.

This filter is maintenance free, simply attached the diverter to your faucet & when you switch on the diverter – it’s all CuZn pure!



{tab=Specifications}
{tab=Installation}

Typical Clearly Clean Water Installation Solution

View detailed diagrams showing alternative installation configurations.




{tab=Glossary of Terms}
review list of other water purification terms...

GPM: Gallons Per Minute

Standard Output: VIQUA’s standard output UV lamp. They generate less heat, but require longer system lengths and exposure time to equal the dose delivered by other lamp types. Ideal for low flow applications. Minimal maintenance costs and heat radiation; full microbiological protection.

High Output: Higher UV power output; ideal for medium to high flow applications.

Amalgam Lamp Technology: For ultimate UV output; typically needed in high flow applications or NSF Class A installations. Due to higher power requirements, it is the preferred lamp technology for light commercial applications or public facilities.

2X Lamp Life: Long life - 2X greater lamp life vs. standard and high output lamps.

2X Output: 2X greater UV-C output vs. standard low pressure lamp technology.

4X Output: 4X greater UV-C output vs. standard low pressure lamp technology.

Constant Current: Ensures stable UV lamp current regardless of power fluctuations.

Safety-Loc: A UV connector design that meets UL979 safety requirements. VIQUA connectors have a built in mechanism that breaks power to the UV lamp and prevents accidental exposure to UV light outside of the chamber.

UV Lamp: The part of the UV system that emits the 254nm germicidal wavelength of UV light. In VIQUA systems, there are 3 types of lamps: Standard Output, High Output and Amalgam.

VIQUA Standard Dose (30mJ/cm2): VIQUA’s uncompromising dose value used to compare all VIQUA systems that do not require NSF Standard 55 Class A certification. Typically used for residential systems. This has been established as an industry standard in the UV water treatment industry.

Connector: The molded connector that the UV lamp plugs into.

Controller: The electronic module that supplies power to the lamp as well as feedback information of the status of the UV system (syn. ballast, power supply)


{tab=Download Documents}
Main Residential Flyer
Installation
Model Spec Summary
